Clean Air. Precise Control. Performance You Can Trust. Designed for modern electronics manufacturing, the UAC-3000 solder fume extractor delivers powerful suction, intelligent airflow control, and high-efficiency filtration - all in a compact industrial design. Capture solder fumes at the source and return purified air safely into your workspace.

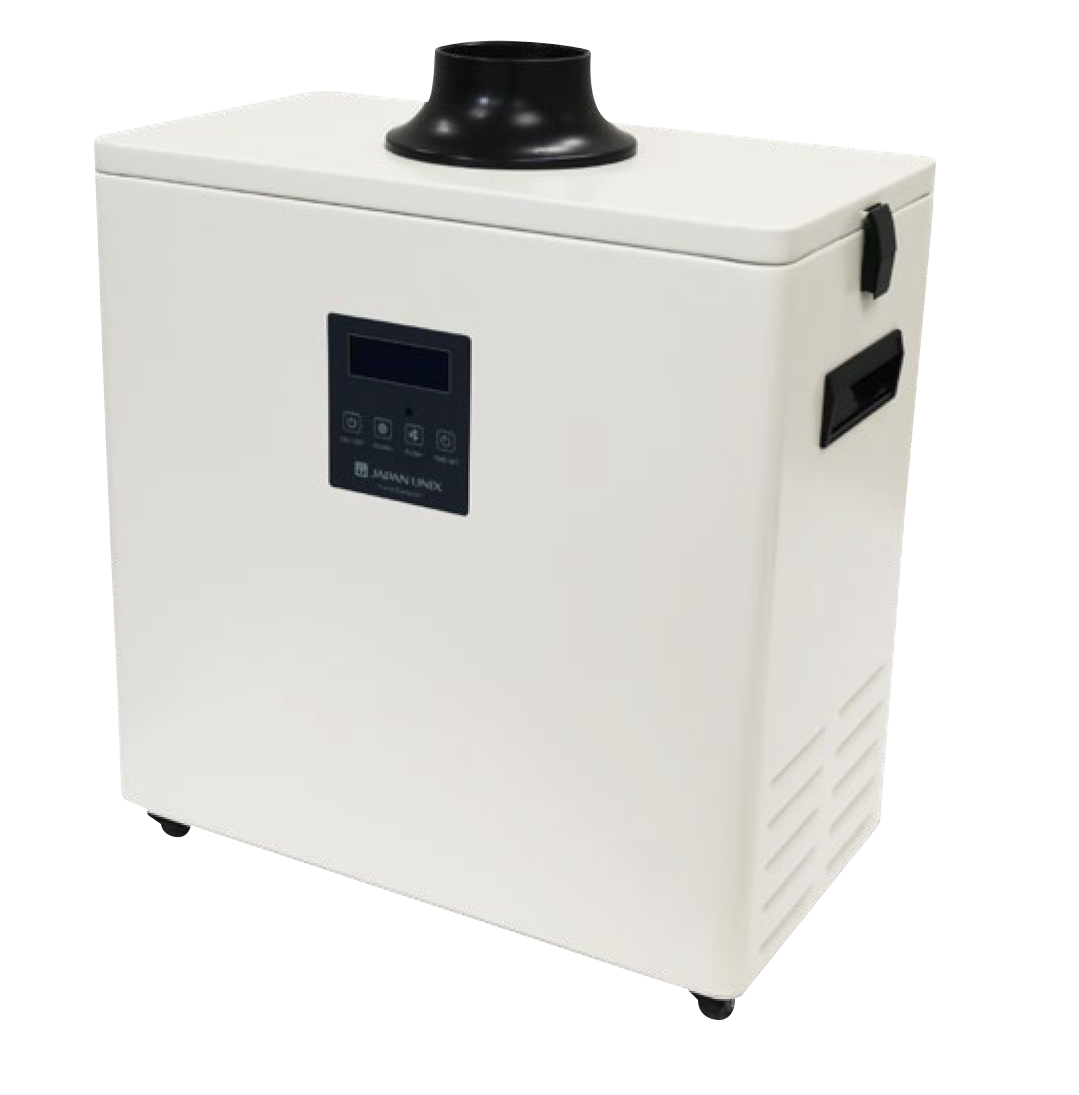

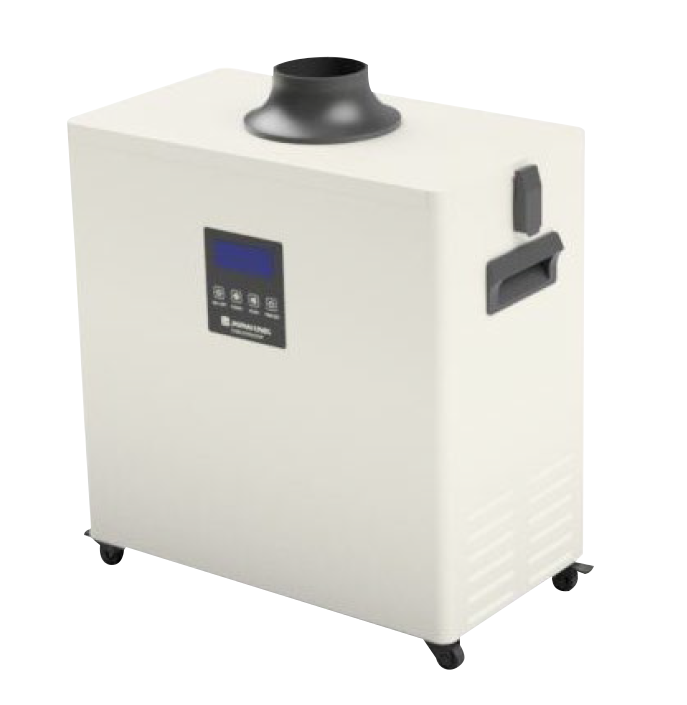

UAC-3000 Fume Extractor
UAC-3000 Fume Extractor
High-Efficiency HEPA Filtration
Engineered with a 3-layer filter structure, the UAC-3000 achieves 99.97% collection efficiency t 0.3 μm, effectively removing flux fumes generated during soldering. • Pre-filter • Medium filter • Carbon filter • HEPA-level performance. Cleaner air means improved operator safety and consistent production environments.
Smart Operation and Remote Control
Designed for efficiency. Built for reliability. The UAC-3000 integrates intelligent features that simplify daily operation:
• Filter clogging detection based on motor speed
• Automatic power-off timer
• Panel lock to prevent unintended changes
• Remote control operation
• Real-time motor RPM and airflow display
Powerful Yet Quiet Airflow
Experience strong extraction performance without excessive noise. Maintain productivity and comfort on the production floor.
• Maximum Air Volume: 300 m³/h
• 10 Airflow Levels for precise suction adjustment
• Sound Level: 55 dB or less at maximum output.
Achieving a clean working environment with three-layer filter structure.
Flexible Power Configuration
By absorbing the fumes generated during soldering, a comfortable and clean environment is provided for workers.
10-level air volume control
The air volume can be finely set from 1 to 10 levels depending on the type of work and the amount of fumes.
High-performance 3-layer protection filter structure
A three-layer filter structure that integrates the prefilter and medium filter. This multi-layered structure effectively blocks and cleans most of the particles in the air.
Reliable alarm detection feature
In the event of filter clogging, equipment failure, or other abnormal events, the alarm immediately notifies you for proper maintenance.
Features and Specs.
COMPACT INDUSTRIAL DESIGN
Optimized for integration into soldering cells and workstations. A space-saving solution for demanding manufacturing environments.
- Weight: 16 kg
- Dimensions: W 459 × D 240 × H 509 mm
- Fume Extraction Port: Ø75 mm
- Casters for mobility
- Indoor air discharge capability
A space-saving solution for demanding manufacturing environments.
BUILT FOR CONTINUOUS PRODUCTION
Reliable airflow performance helps maintain process stability. Designed to operate within industrial environmental conditions:
- Operating Temperature: 0–40°C
- Relative Humidity: 40–80% (non-condensing)
- Overvoltage Category II
- Contamination Degree 2
CLEAN AIR PERFORMANCE
Capture Fumes. Improve Safety. Increase Productivity. The UAC-3000 is engineered to support high-precision soldering operations with clean air management and dependable performance.
FLEXIBLE POWER CONFIGURATION
Stable performance across different installation requirements. Available for global production facilities:
- AC100–120V ±10%
- AC200–240V ±10%
- Power Consumption: 350 VA (Max)
COMPLETE SYSTEM SOLUTION
The standard configuration includes:
- Main fume extractor unit
- Remote control
- Built-in medium and carbon filters
- Pre-filters (installed + spares)
- Optional duct arms and accessories allow customization for specific workstation layouts.

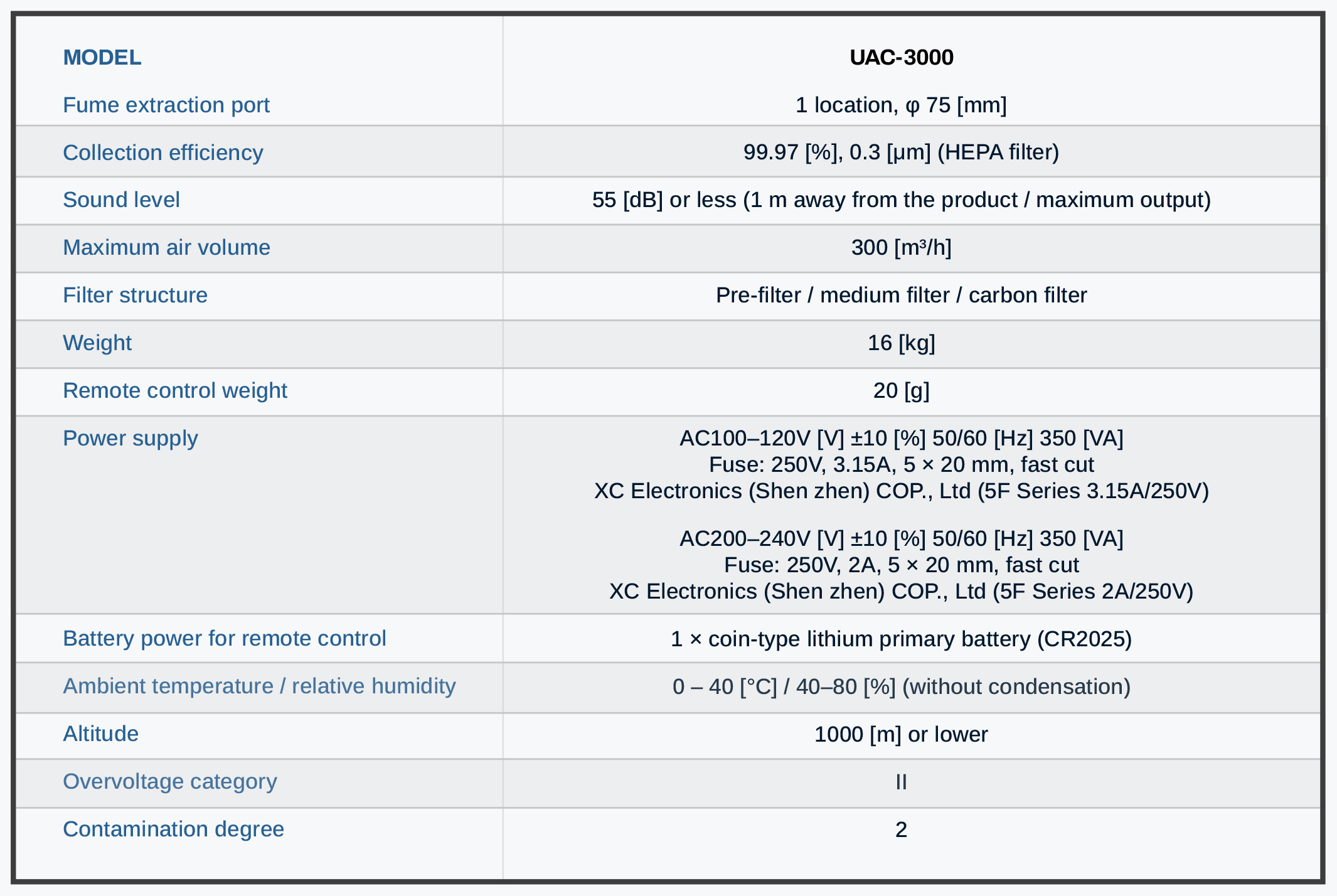

Equipment Specifications | UAC-3000 Industrial Fume Extractor

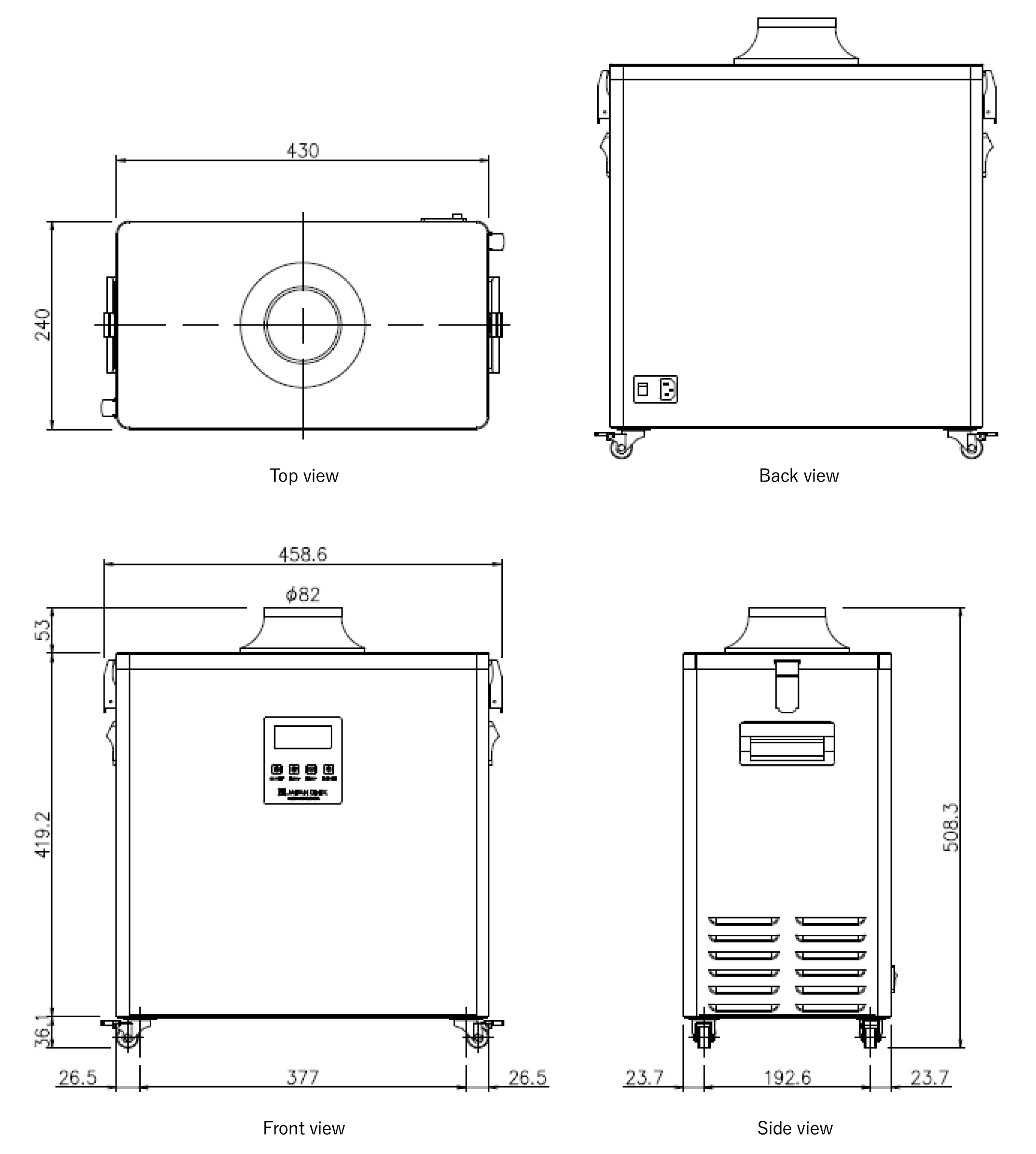

External Dimensions
Main Body
Certified Compatible Robots
Benchtop
Available in Contact and Laser.
Gantry
Available in Contact and Laser.
SCARA
Available in Contact and Laser.
6-Axis
Available in Contact and Laser.
Modules
Available in Contact and Laser.
Certified Compatible Platforms
Twin-Table Benchtop
Available in Contact and Laser.
Stand-Alone Gantry
Available in Contact and Laser.
Twin-Table Gantry
Available in Contact and Laser.
SCARA Cell
Available in Contact and Laser.
Stand-Alone Cell
Available in Contact and Laser.
Inline Cell
Available in Contact and Laser.
AutoBlocks
Available in Contact and Laser.
Robotic Soldering Add-ons
Fancort’s robotic soldering add-ons, including laser and contact soldering solutions, deliver unmatched precision and efficiency. Designed for seamless integration with robotic systems, these add-ons enhance soldering quality while increasing production speed. Ideal for diverse applications, they ensure reliability and adaptability to meet the evolving demands of modern automated manufacturing.
- Contact Soldering
Contact Soldering Add-ons
Standard Feeder
The "Standard Feeder" from Japan Unix is typically used in robotic soldering systems to automate the process of feeding solder wire to the soldering tip. Available in High-Precision Version.
CONTACT SOLDERING
Brush Cleaner
Automated cleaner for irons tip that removes carbides, stannous tin oxides, and other impurities caused from soldering operations. This ensures that the soldering tips maintain optimal thermal conductivity and performance.
CONTACT SOLDERING
Uni-tester
This device is used for measuring soldering iron tip temperature, tip to ground potential, and tip to ground resistance.
- Considering the installation of this device , the sensor unit comes separated from the main control unit.
- Data transmission to external devices is possible by using RS232C connection.
- Tip to ground potential and tip to ground resistance measurement complies with the following standards: MIL STD 2000 (2000A) / IPC J STD 001G / IEC 61191 1 (Ed3/2018)
CONTACT SOLDERING
Traceability
Enhance traceability in manufacturing and logistics by providing accurate and reliable data capture, ensuring that each product or component can be tracked through every stage of the production process.
CONTACT SOLDERING
Custom Fixturing
Specifically designed to hold, support, and position parts or assemblies during operations like machining, soldering, or inspection. Tailor made fixturing to ensure repeatability for your process.
CONTACT SOLDERING
Soldering Tips
Designed to transfer heat from the soldering iron to the components and solder, enabling the melting of solder to form electrical connections. Made with high-quality materials to ensure durability, and consistent performance.
CONTACT SOLDERING
Clean Cut Feeder
The feeder’s notching technology reduces flux dispersal and solder balls, preventing manufacturing issues like flux splatter. Available in High-Precision Version.
CONTACT SOLDERING
Tip Position Corrector
Adjusts tip slippage caused from thermal expansion, burning out or others. It never requires resetting conditions or reconfiguration. Its fully automated. Managing unexpected slippage is essential for maintaining consistent quality.
CONTACT SOLDERING
Fiducial Correction
Revolutionize your robotic soldering with our cutting-edge Fiducial Correction Vision System, ensuring pinpoint accuracy and seamless precision based on fiducial marks.
CONTACT SOLDERING
AOI Vision Sensor
High-Performance Vision Sensor with AI capabilities.
1. Presence/Absence detection of features, patterns, edges, and circles.
2. Ethernet communication with TCP/IP, Profinet, ethernet/IP, SLMP, and FTP for saving data.
CONTACT SOLDERING
Airblow
Air blower, vacuum type. Reduces debris scattering. Built-in solenoid valve. It uses compressed air to blow away unwanted particles, which helps in maintaining a clean and efficient soldering process.
CONTACT SOLDERING
Enhance Your Soldering Operations with Premium Add-Ons!
Unlock the full potential of your robotic soldering systems with our advanced Contact Soldering Add-Ons and Laser Soldering Add-Ons. Designed to elevate precision, efficiency, and reliability, these accessories seamlessly integrate into your workflow to meet even the most demanding production requirements.
✅ CONTACT SOLDERING ADD-ONS
Achieve consistent solder quality with precision tools.
Enhance performance with optional feeders, preheaters, and soldering tip upgrades.
📞 Ready to get started? Contact us today!
Click the button below or call us now to learn how our add-ons can transform your operations.
