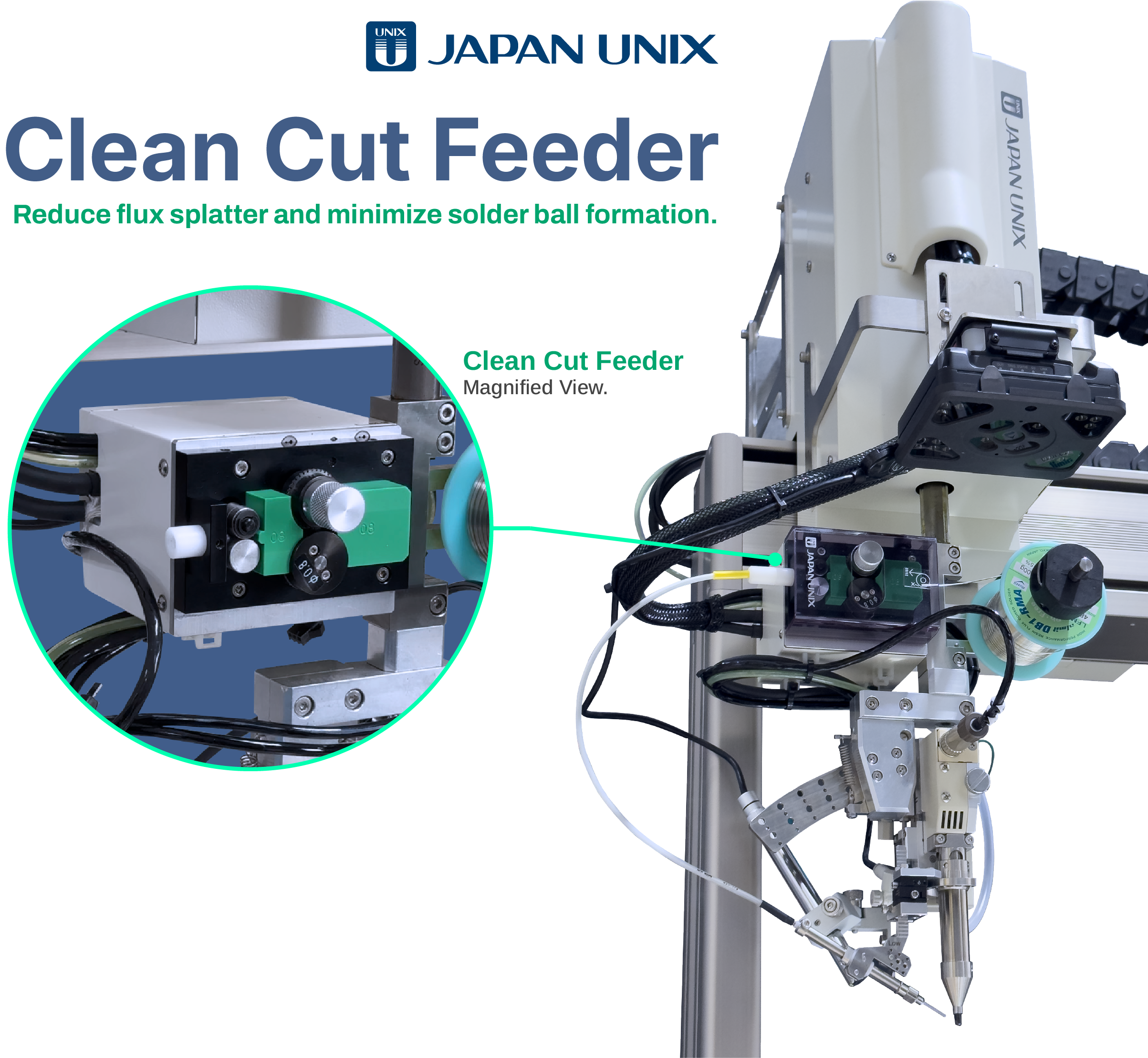

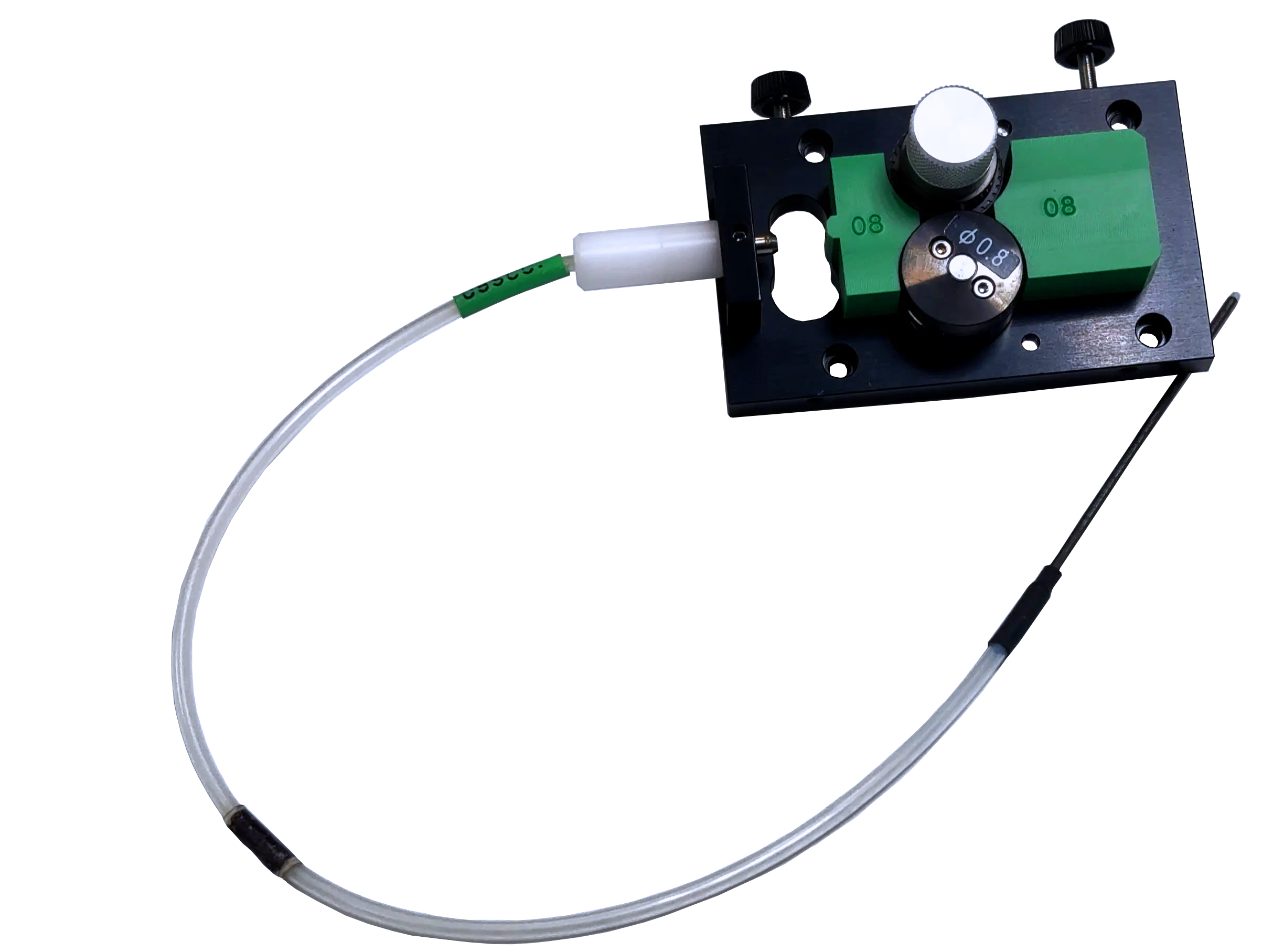

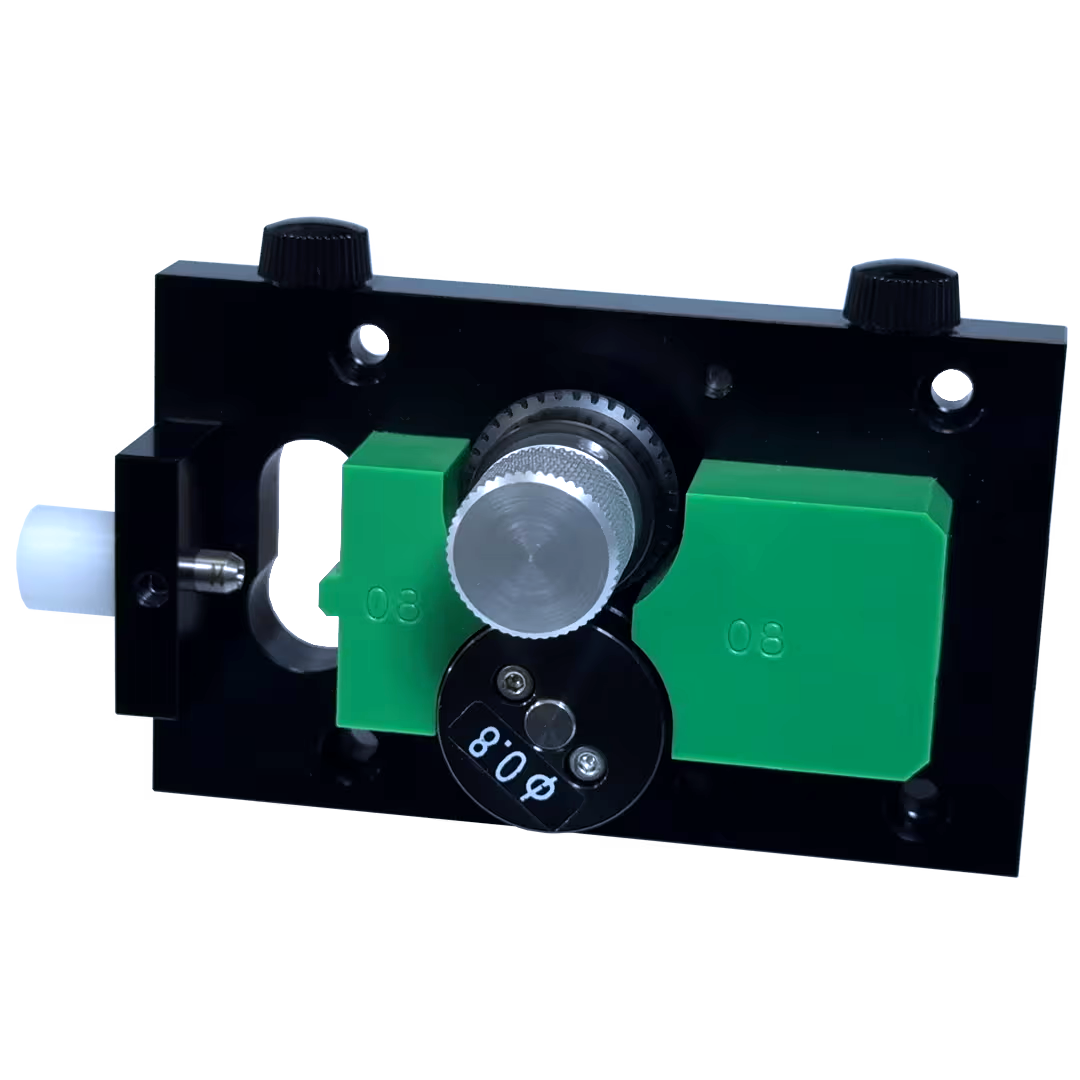

Clean Cut Feeder, Advanced Soldering Feeder.

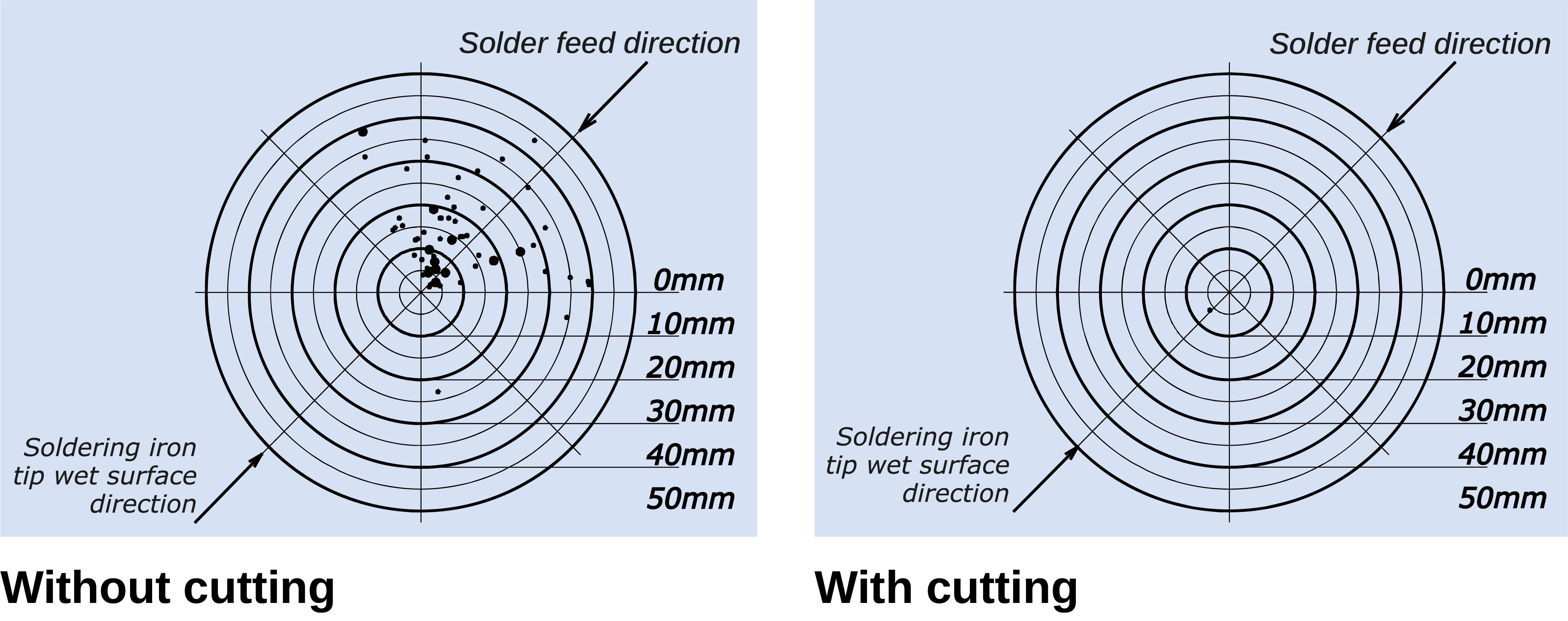

Flux scattering comparison: Wire solder with and without cutting

In the image above you can visualize the dramatic reduction in flux splatter when using specialized cutting technology during automated soldering. Scoring the resin flux-cored solder before application allows trapped gases to escape gently, preventing sudden flux bursts upon heating.

Flux Scattering Comparison
Without Cutting (Left Graphic): Unnotched solder wire causes significant flux dispersal and solder ball formation. The expanding flux violently erupts upon contact with the heat source, scattering debris up to 50mm away from the solder joint.

With Cutting (Right Graphic): Processing the wire through a notching mechanism (Clean Cut Feeder) almost entirely eliminates flux scattering. The graph shows a highly localized footprint, protecting surrounding electronics from contamination.

Clean Cut Feeder Benefits

• Defect Prevention: Eliminates manufacturing issues caused by stray solder balls or flux splatter bridging sensitive PCB contacts.
• Reduced Maintenance: Keeps the immediate environment clean, minimizing post-production board cleanup and preserving the soldering iron tip.
• Reliable Automation: Integrates seamlessly into robotic platforms using advanced blade systems (such as Fancort's 3-blade mechanism) to cleanly cut the wire while ensuring stable reverse feeding.

Integrating the Clean Cut Feeder technology protects product quality and improves production speed.

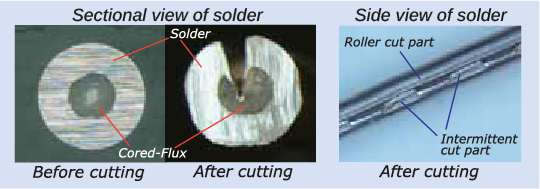

Solder Wire Cross-Section & Cut Profile

Sectional and Side Profile of Cut Solder Wire

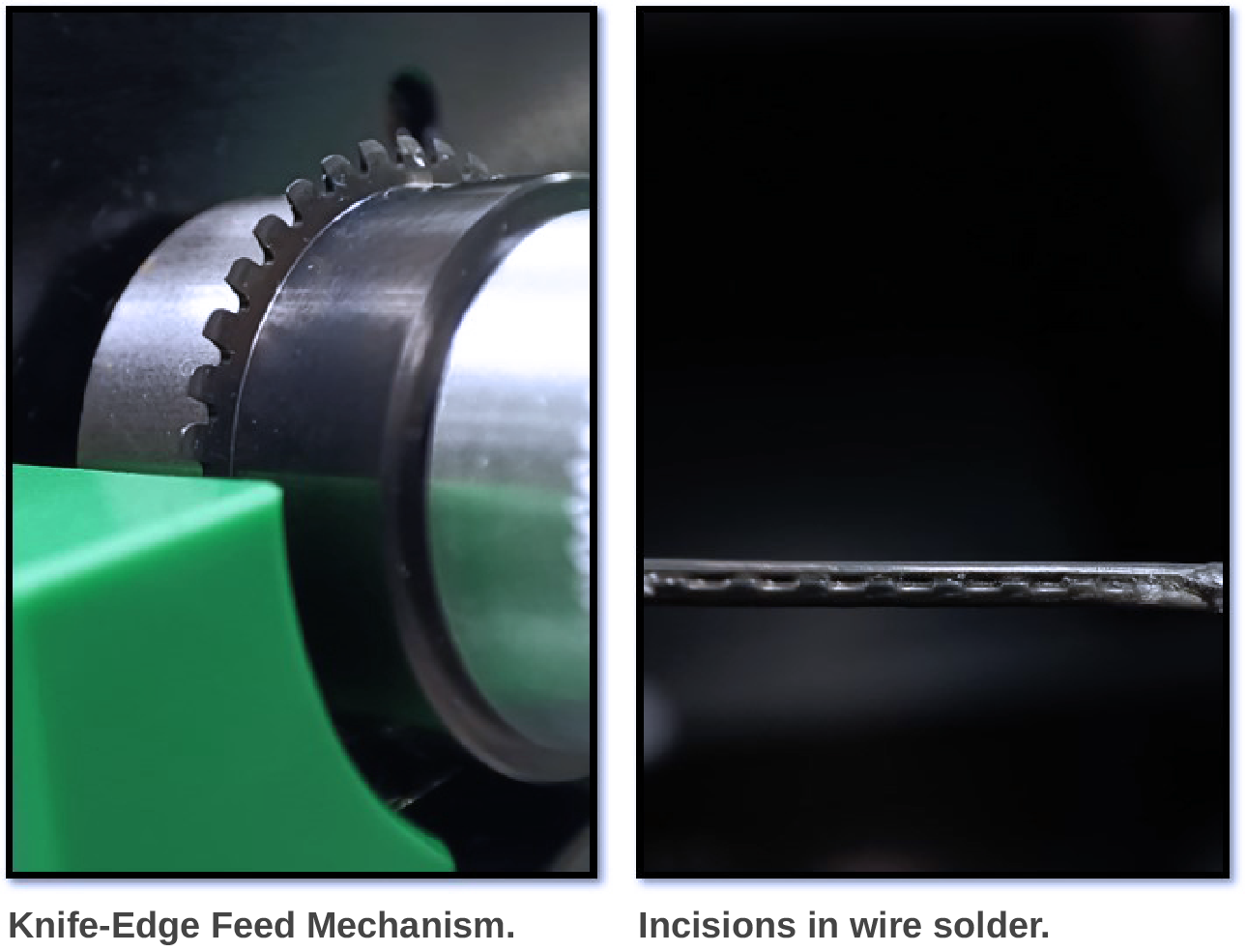

Solder Wire Cross-Section Analysis: The diagram illustrates how the Clean Cut Feeder physically modifies resin flux-cored solder to prevent splatter during automated soldering. The sectional view contrasts an uncut wire with a processed wire, highlighting a precise V-shaped notch that cleanly exposes the internal flux core, which allows expanding gases to escape harmlessly upon heating. Additionally, the microscopic side profile reveals the feeder's advanced blade mechanism, displaying a targeted pattern of continuous roller cuts and intermittent cuts designed to control flux volume and eliminate solder ball defects on sensitive PCB contacts.

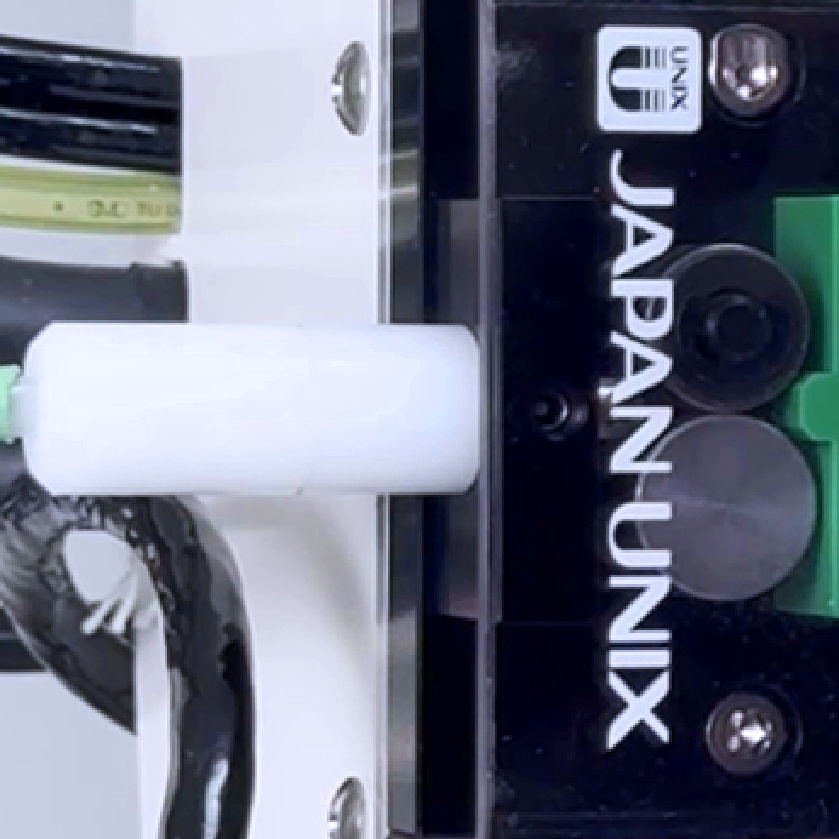

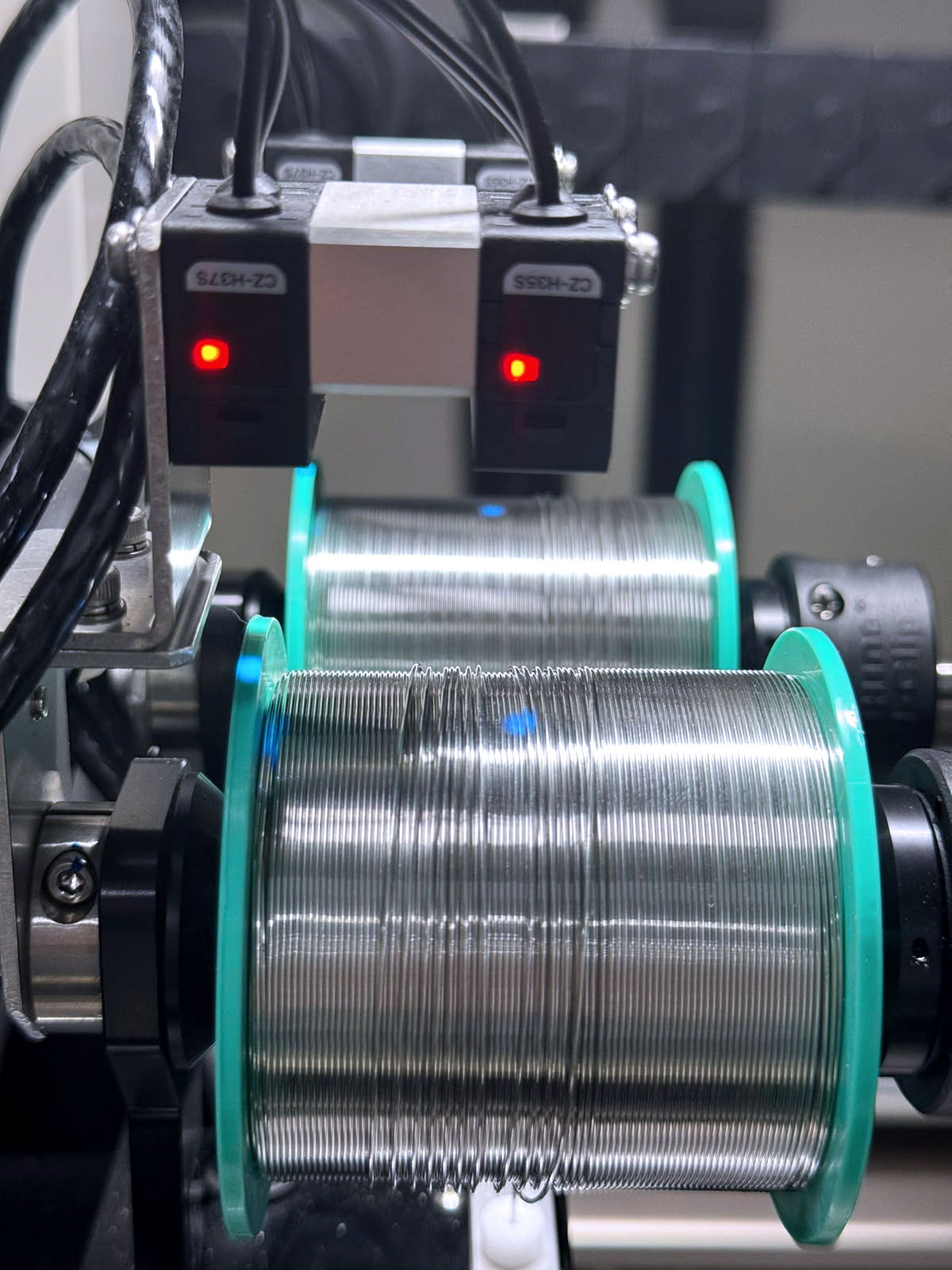

Our Clean Cut Solder Feeder integrates high-precision RGB fiber optic sensors. These advanced photoelectric sensors accurately detect solder wire color variations and continuously measure remaining solder levels. By preventing solder runouts, misfeeds, and material inconsistencies before downtime occurs, this integrated sensor setup maximizes operational efficiency, solder joint quality, and seamless robotic soldering performance.

Picture: Clean Cut Feeder with Integrated Sensors optional Add-on.
