ROBOTIC
VISION SYSTEMS

Trusted by the Aerospace & Defense Industry for over 47 years

powered by japan unix & developed by fancort industries

Fancort Robotic soldering vision systems

OVERVIEW

Fancort offers a full range of vision systems specialized to make your robotic soldering process easier to program, more reliable and productive, Our team of automation engineers developed three types of visions systems for robot programming, fiducial correction, and multi-task (AOI/inspection, fiducial, pattern match, poke yoke, and measurement).



FANCORT TEACHING AID

The Fancort Teaching Aid system produces a magnified high resolution image which improves operator visualization and solder joint process development.



FANCORT FIDUCIAL CORRECTION SYSTEM

The Teaching Aid system hardware and software is easily upgraded to our Fancort Fiducial Correction System with the addition of a machine vision camera to the side of the robot (pictured above).
This camera allows for the operator to train the robot to offset the robot program to correct for positional variance of the solder components. It also offers image/video capture, machine file storage, and remote session tech support capable.



FANCORT MAX MACHINE VISION

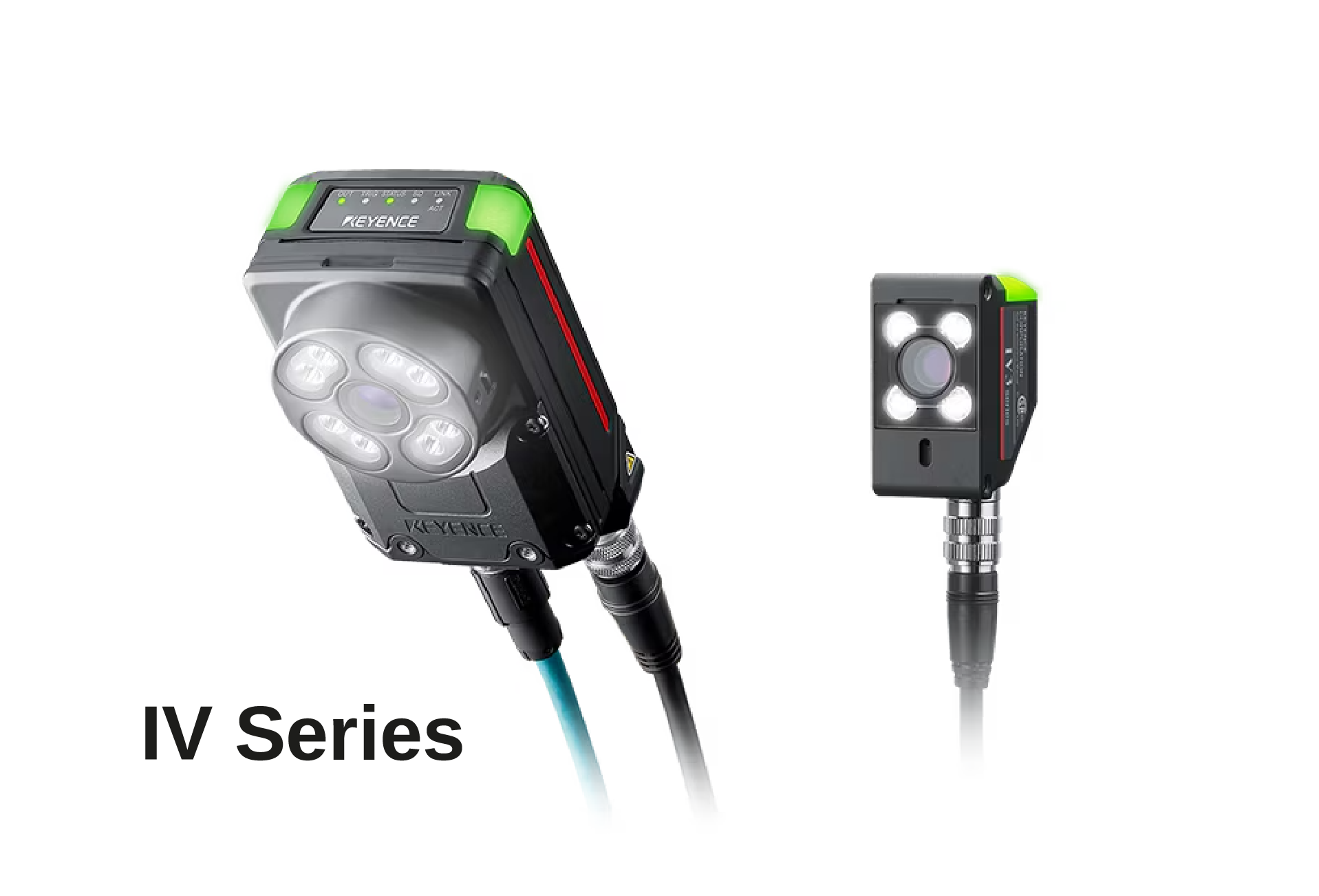

The Fancort Max Machine Vision is a customized stand alone system based on world leading Keyence Vision technology capable of many types of inspection and fiducial correction.
This system has many software capabilities but is best suited when dedicated to one task in a given process.

Each system comes fully integrated and mounted to your Japan Unix robot of choice.



FANCORT VISION SYSTEMS OFFER

CAMERA
10" TOUCH PANEL PC
TEACHING AID CAMERA

LOGIN SCREEN

VISION RUN

VISION SETUP

TEACHING AID CAMERA VIEW

JAPAN UNIX ROBOT

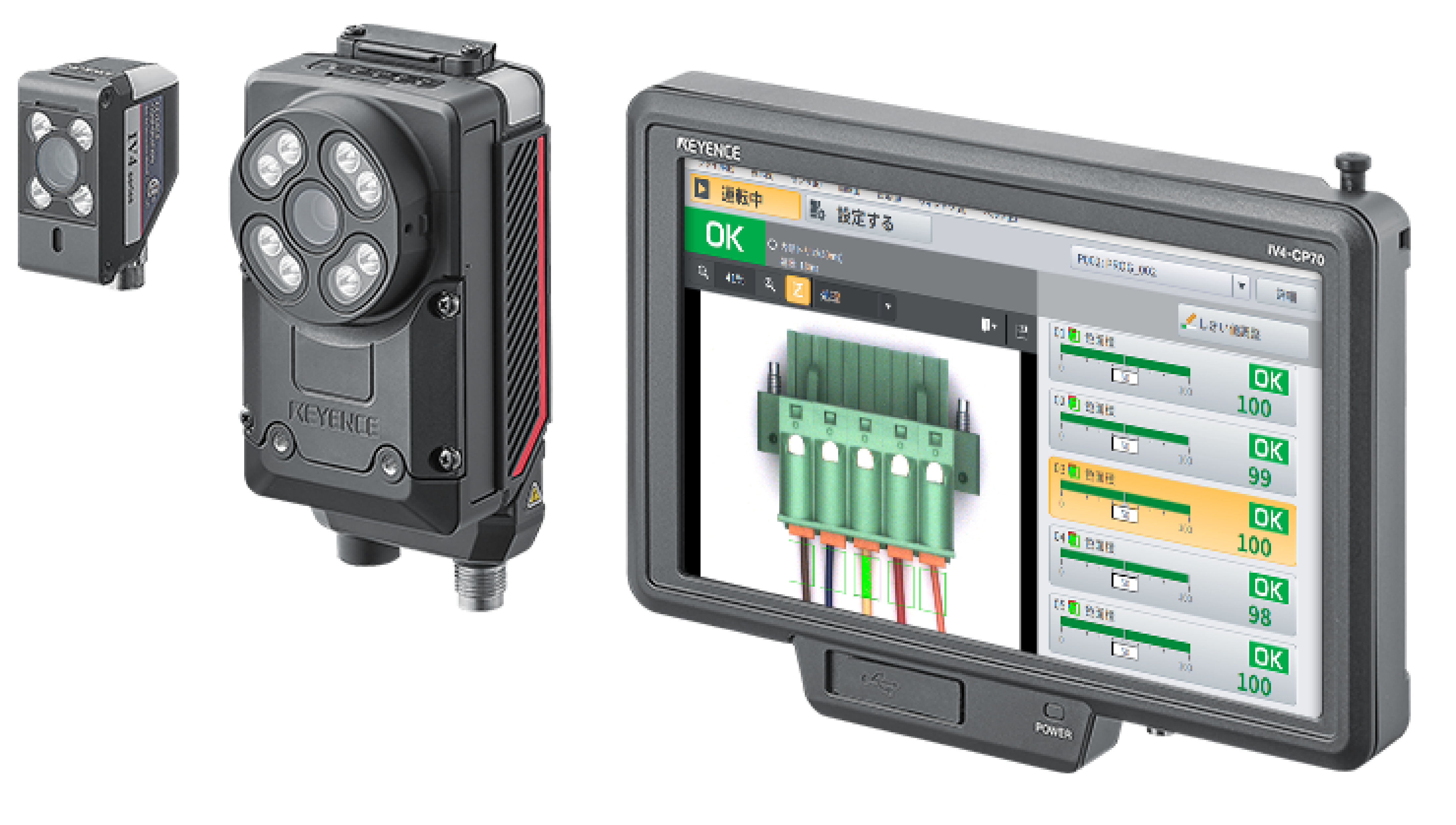

KEYENCE VISION SYSTEM*

Additional Capabilities**

*Keyence Vision System available only with the Fancort Max Machine Vision System.

**Additional capabilities are available with the Fancort Max Machine Vision System.

THREE VERSIONS AVAILABLE

  • FANCORT TEACHING AID SYSTEM
  • FANCORT FIDUCIAL CORRECTION SYSTEM
  • FANCORT MAX MACHINE

FANCORT TEACHING AID SYSTEM

The Fancort Teaching Aid system produces a magnified high resolution image which improves operator visualization and solder joint process development.

Hardware

        • Industrial PC
        • Touch Screen Monitor
        • Digital Microscope with LED Lightning
        • Mounting Brackets and cables

SOFTWARE

        • High-Resolution / Magnified process video feed
        • Video and Image capture
        • Machine Documentation Storage
        • Remote tech support
        • Visual Teaching Aid

FANCORT FIDUCIAL CORRECTION SYSTEM

Fancort Fiducial Correction System adds a machine vision camera to the side of the robot, this camera allows for the operator to train the robot to offset the robot program to correct for positional variance of the solder components. It also offers image/video capture, machine file storage, and remote session tech support capable.

Hardware

        • Industrial PC
        • Touch Screen Monitor
        • Digital Microscope with LED Lightning
        • Mounting Brackets and cables
        • Fiducial Camera Bracket
        • LED Lightning
        • Camera Bracket

SOFTWARE

        • High-Resolution / Magnified process video feed
        • Video and Image capture
        • Machine Documentation Storage
        • Remote tech support
        • Visual Teaching Aid
        • Fiducial Correction

FANCORT MAX MACHINE

The Fancort Max Machine Vision is a customized stand alone system based on world leading Keyence Vision technology capable of many types of inspection and fiducial correction.

This system has many software capabilities but is best suited when dedicated to one task in a given process.

Each system comes fully integrated and mounted to your Japan Unix robot of choice.

Hardware

        • Touch Screen Monitor
        • Mounting Brackets and cables
        • Fiducial Camera Bracket
        • LED Lightning
        • Camera Bracket
        • Keyence Controller
        • Teach Pendant

SOFTWARE

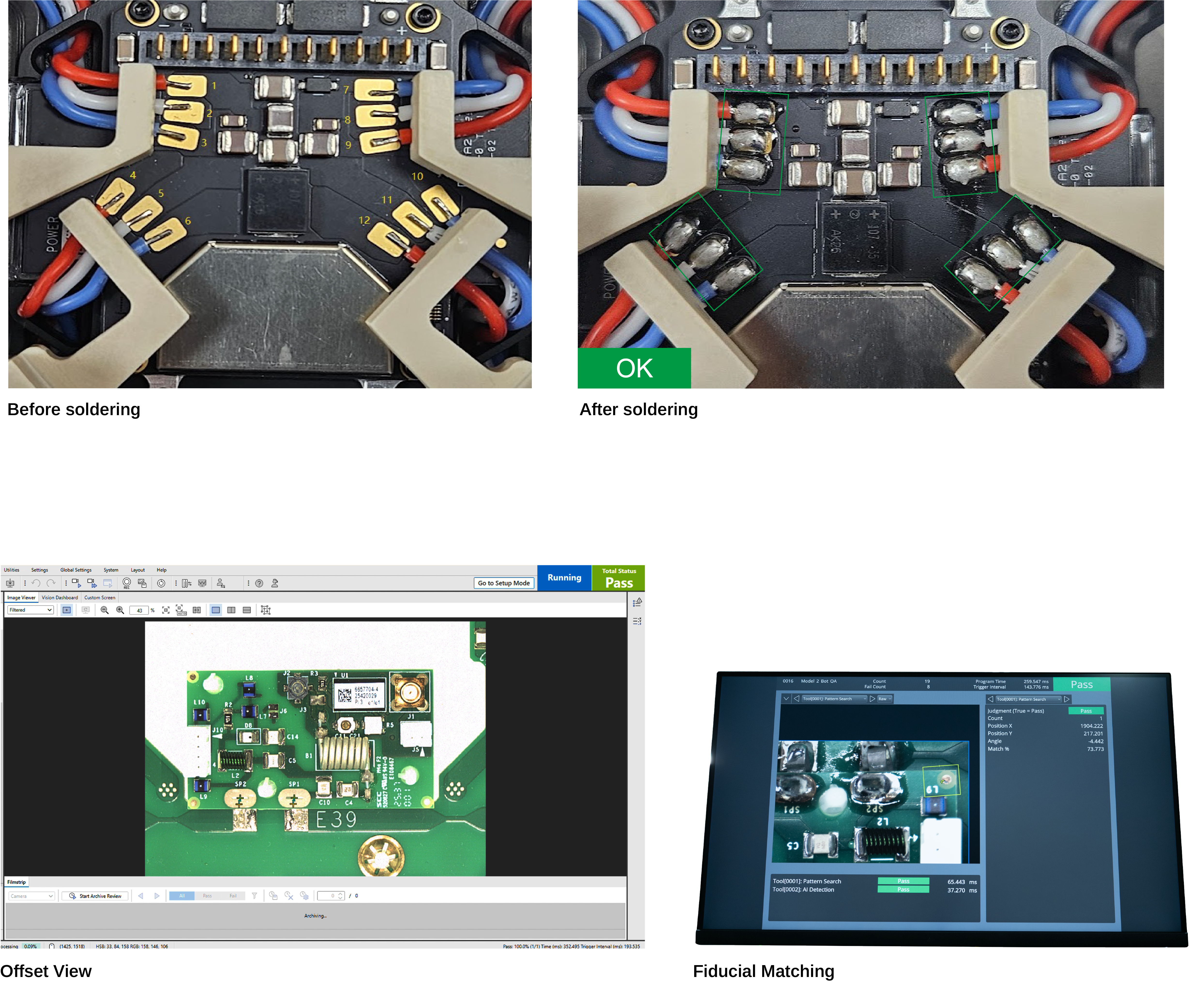

        • Fiducial Correction

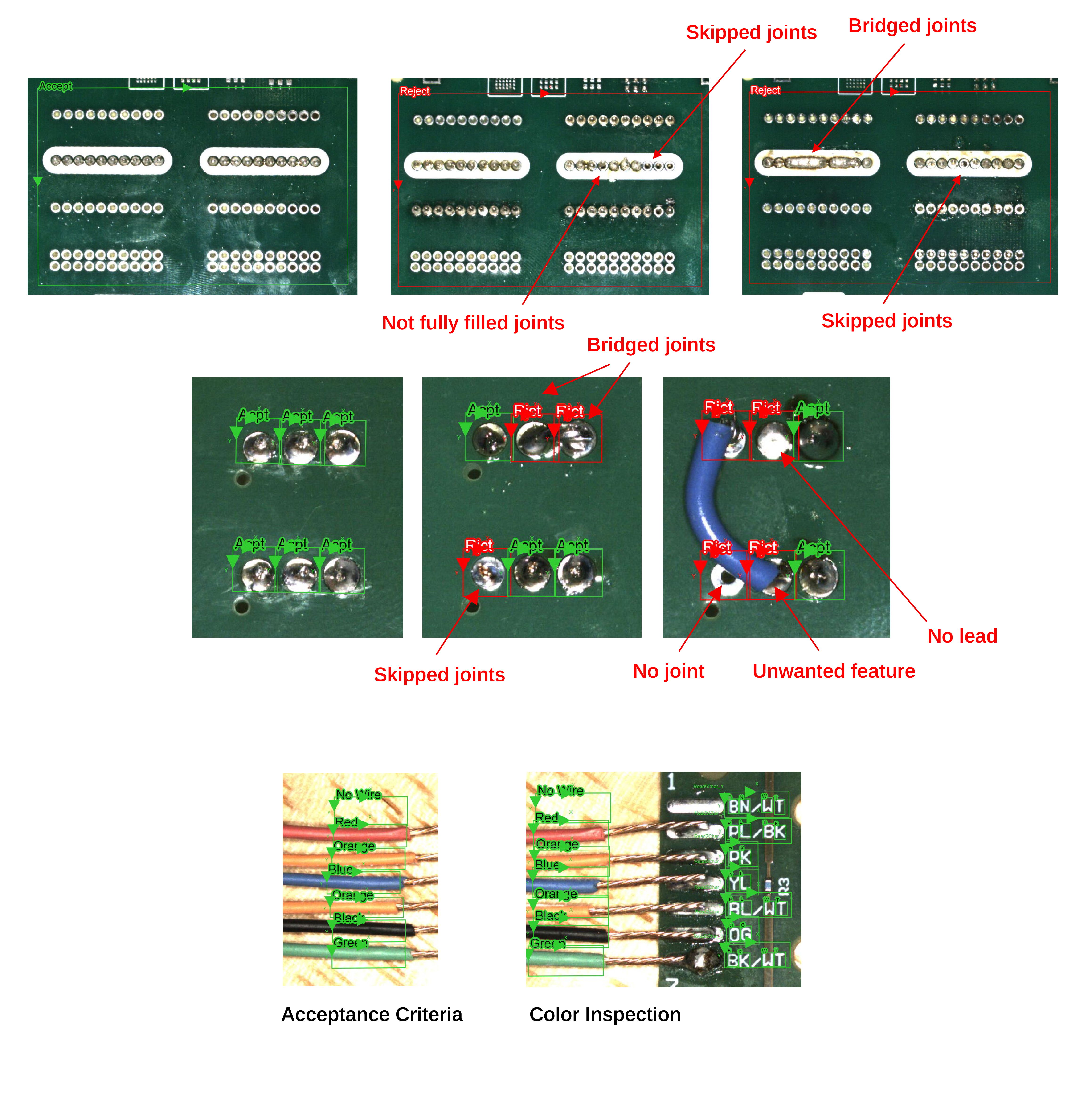

        • AOI/Solder Joint Inspection
        • Measurement
        • Presence/Absence Detection
        • Poka-yoke
        • Pattern Match

COMPARISON TABLE - FANCORT VISION SYSTEMS

REQUEST INFORMATION
REQUEST SAMPLING



We can customize to fit your needs, for more information, click on the button or contact:

Bruce Clark
bruce@fancort.com
(201) 396-2968
