VPD5-330 Linear "V" Cut - High Volume PCB Depaneler

The equipment is designed to minimize board stress and avoid component damage.
Heavy frame for stability, pneumatic cylinder operated.

Specs:

Features:

• Dual "V" Shape blades for a perfect board cut without bending or tension
• Pneumatic Footpedal operated
• Separates panels up to 0.100" thickness
• Minimum board thickness of 0.024"
• Shears boards safely with parts as close as 0.020" to the score line, including ceramic capacitors.
• Pneumatic system
• "Poka-Yoke" system will only allow correct board placement to avoid mistakes

Options:

• Modified blades for benchmark
• Safety enclosure custom designed
• Tray to safely catch boards after depaneling process
• Upgrade to VPD5-330V AUTOMATED V-SCORE PCB CUTTER
• Contact us for more custom options

Low to Moderate Volume

Specs:

Features:

• Locking Guide
• Separates 0.050" - 0.070" from score line without damage components.
• Easy adjustment and positive locking of guides and knives for different thickness boards.
• Adjustable Speed control
• Automatic parallel blade adjustment
• Edge distance guide for separating scored boards

Options:

• Knife size
• Guide size
• Contact us for more custom options

For more information, contact:
info@fancort.com
(888) 326-2678

Important notice: 6-8 weeks lead time.

Disclaimer: Fancort Depaneling Equipment must be shipped through a Freight Carrier.

Please contact info@fancort.com for international orders.

Low to Moderate Volume

Specs:

Features:

• Round & Linear knives to reduce stress during the cut
• Locking Guide
• Linear Bearing mechanism to align blades automatically
• Adjustable work table (Height & Angle)
• OSHA Safety guides
• Automatic parallel blade adjustment
• A wide table on both sides of the knives, 6.25" x 20"

• Cuts board with components overhanging scoreline with modified linear knife

Options:

• Motor Overload protection
• Microprocessor Board
• Relay
• Photoelectric Safety Sensor
• Proximity Sensor
• Contact us for more custom options

Affordable Low Volume Tab Router

Specs:

Features:

• A2 tool steel knives
• Footswitch operated
• Scrap Collector

Options:

• K Knife
• T Knife
• Blade Thickness

For more information, contact:
info@fancort.com
(888) 326-2678

 Important notice: 6-8 weeks lead time.

Disclaimer: Fancort Depaneling Equipment must be shipped through a Freight Carrier.

Please contact info@fancort.com for international orders.

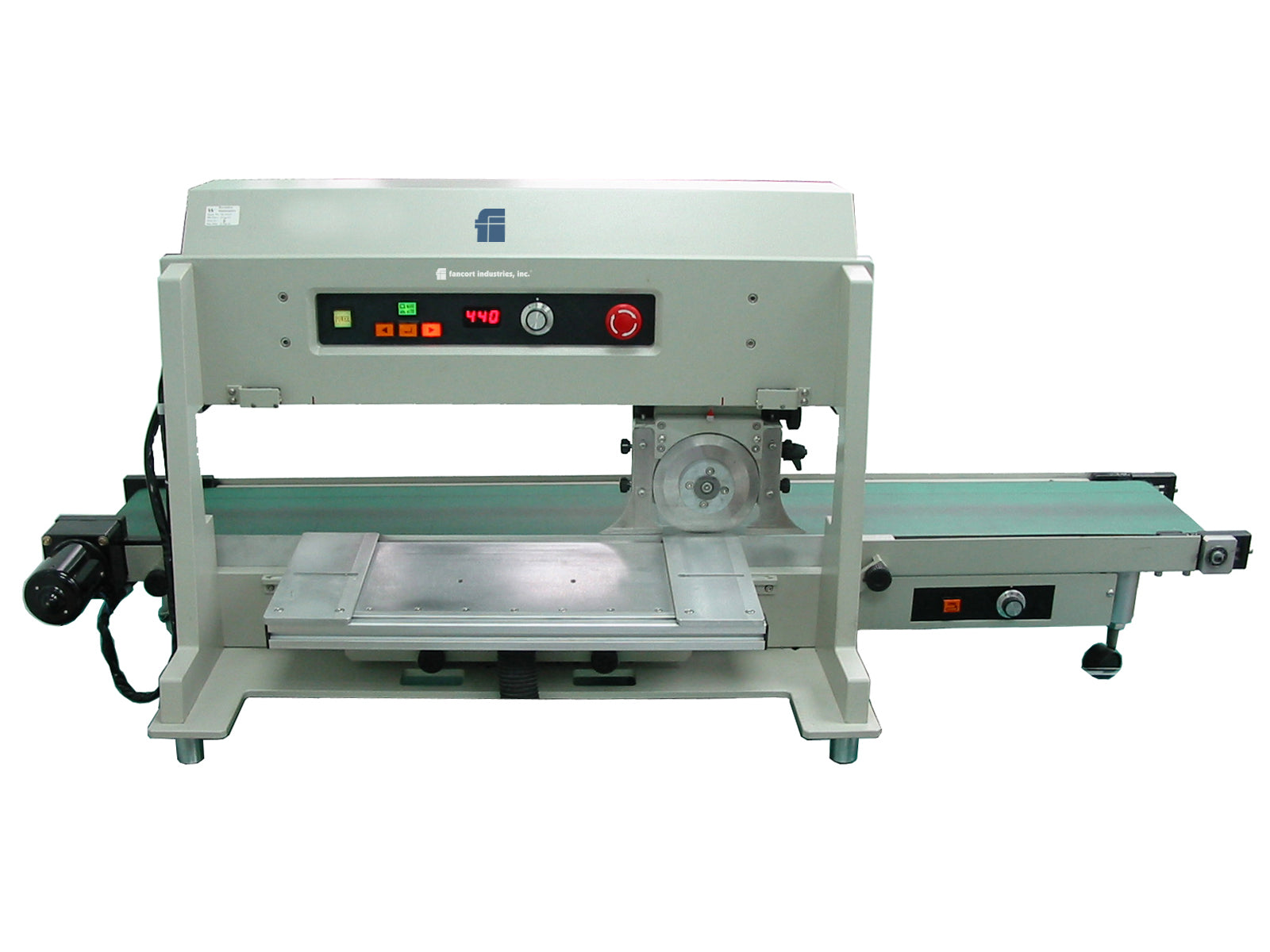

VPD3-1SB (V-cut separator)

Features

• Place the V-groove of the PCB on the lower blade, and the cutting action will be completed by the upper motorized circular blade. This minimizes stress and reduces burr during cutting.
• Safety distance between the component and the V-groove of the PCB is about 1 mm.
• Quick lock design for easy circular blade setup for different PCB thicknesses.
• Special tool steel to ensure long service life of cutting blades.
• LED display indicates the separating length.
• Equipped with 3 optical safety sensors together with blade guide to ensure safe operation.
• The PCBs after cut will be transferred by the conveyor to the end of the RHS for pickup. An optical sensor is installed; the conveyor will stop when a PCB is detected at the end. This detection function can be selected bypass.

Specifications

• Cutting Speed:    0 ~ 400 mm/sec
• Max. PCB Length:    460 mm
• PCB Thickness:    0.8 ~ 2.0 mm
• Belt Speed:    0 ~ 250 mm/sec
• Power Supply:    AC 110/220V 50/60Hz
• Weight:    85 KG
• Dimensions:    1280 x 460 x 549 mm

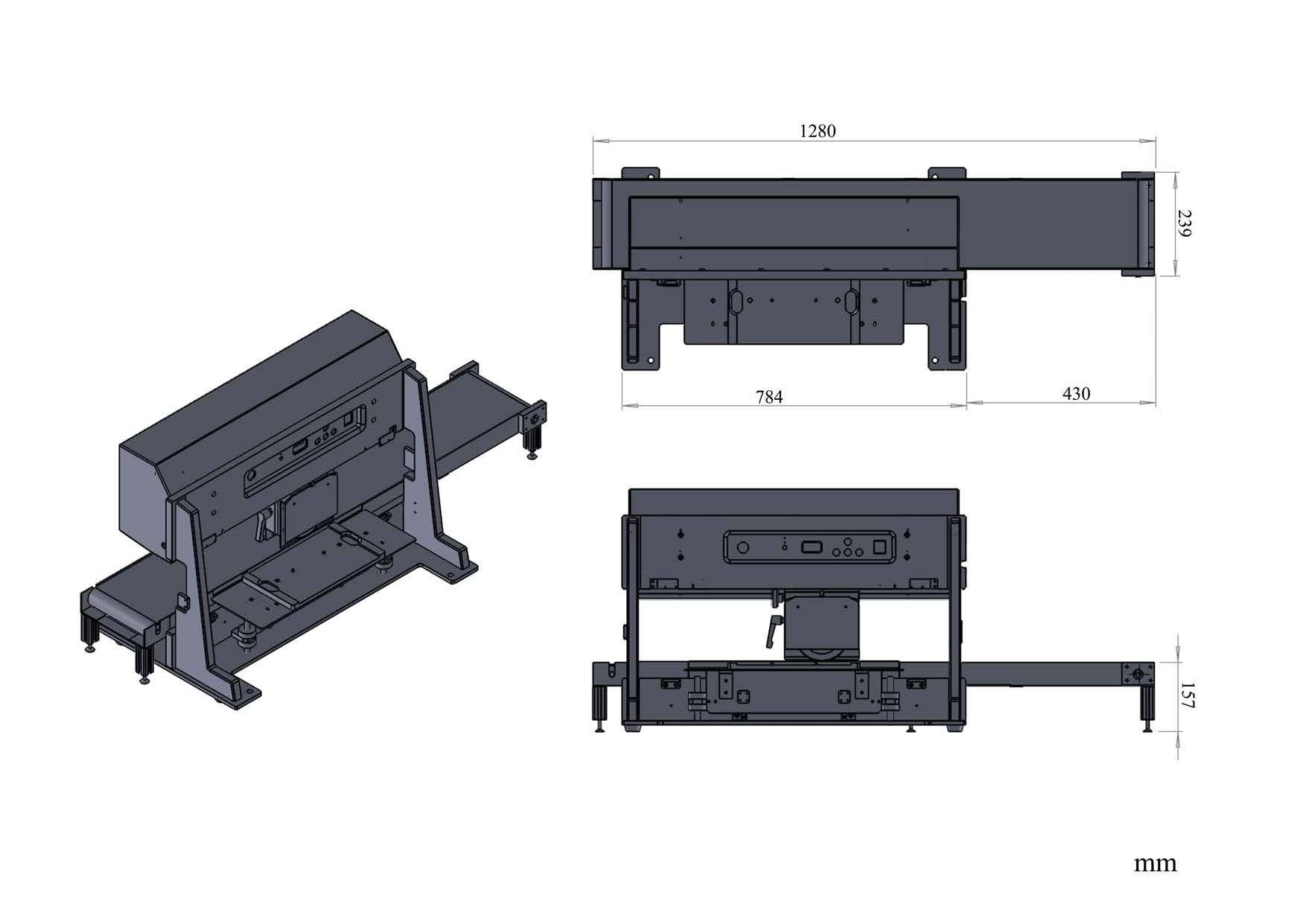

Machine Dimensions (Diagram)

• Height: 549 mm
• Width: 1280 mm
• Depth: 460 mm (main body), conveyor extends further
• Other Measures:
• 151 mm clearance under frame
• 784 mm internal width
• Conveyor extension: 430 mm
• Total conveyor depth (side view): 290 mm

VPD-10 - Bench Top PCB Depaneler for LED PCB's

The equipment is designed to minimize board stress and avoid component damage.
Three pairs of precision beveled cutting blades can ensure the board does not bend or deform.
The guide can be adjusted vertically to suit different LED boards.

Depth between upper circular blades can be precisely adjusted to reduce stress on the score-line edge and blade wear.

Specs:

• Servo-Motor (110 / 220V)
• 2.4mm Stainless steel platform is standard.
• Topside clearance is 0.7mm in height at a 45mm distance
• Machine Size: 15.75 x 15.75 x 13.4".
• Platform Size: 59 x 10.6 x 7.85.
• Minimum Speed: 0-400 mm/s.
• PCB Thickness Range: 0.8-3.375 mm.
• Machine Weight: 45 Kg.

Features:

• Separates panels up to 0.100" thickness
• The Longest Panel: No limit
• Minimum board thickness of 0.024"
• Shears boards safely with parts as close as 0.020" to the score-line, including ceramic capacitors.
• Pneumatic system
• "Poka-Yoke" system will only allow correct board placement to avoid mistakes

Options:

• Safety enclosure custom designed
• Tray to safely catch boards after depaneling process
• Contact us for more custom options

Motorized PCB Depaneler

The equipment is designed to minimize board stress and avoid component damage.
A heavy frame for stability and precision linear bearing ensures proper blade alignment for a perfect cut.

Specs:

Features:

• Round & Linear knives to reduce stress during the cut
• Locking Guide
• Linear Bearing mechanism to align blades automatically
• Adjustable work table (Height & Angle)
• OSHA Safety guides
• Automatic parallel blade adjustment
• A wide table on both sides of the knives, 6.25" x 20"

• Cuts board with components overhanging scoreline with modified linear knife

Options:

• Motor Overload protection
• Microprocessor Board
• Relay
• Photoelectric Safety Sensor
• Proximity Sensor
• Contact us for more custom options

CE marking
Our models VPD3-1-620, VPD3-1-460, and VPD3-1-1230 proudly bear the CE marking, signifying compliance with the EU's 'Conformité Européenne' standards for quality and safety.

Important notice: 6-8 weeks lead time.

Disclaimer: Fancort Depaneling Equipment must be shipped through a Freight Carrier.

Please contact info@fancort.com for international orders.
